Modular Control Rooms Built for the World's Toughest Environments
Pre-engineered control room buildings, e-houses, and modular electrical enclosures for oil & gas, power generation, mining, and data centers. Delivered in 12–16 weeks — not 12–14 months.
Engineered for Your Industry
Every modular control room is purpose-built for the specific codes, hazards, and operating conditions of your industry.
Oil & Gas
Hazardous-area-rated control rooms for upstream production, midstream compression stations, and downstream refining. Designed to meet NFPA 496 pressurization, Class I Division 2 electrical classifications, and API RP 752/753 blast resistance standards.
- Class I Div 2 / Zone 2 hazardous area ratings
- API RP 752 blast-resistant construction
- NFPA 496 positive pressurization systems
- H2S and combustible gas monitoring integration
Power Generation
E-houses and electrical buildings for substations, solar farms, wind parks, and combined-cycle plants. Pre-integrated switchgear, MCC, and SCADA systems reduce on-site commissioning from months to days.
- Medium and low-voltage switchgear integration
- UPS and battery room compartments
- Arc-flash rated construction to IEEE C37.20.7
- Seismic Zone 4 structural certification
Mining & Minerals
Ruggedized modular control rooms for open-pit mines, mineral processing plants, and remote extraction sites. Engineered for extreme temperatures, high altitudes, dust, and vibration in some of the harshest operating environments on earth.
- Operating range: -40°F to 130°F (-40°C to 55°C)
- Dust-tight NEMA 4X / IP66 enclosures
- Vibration-isolated equipment mounting
- Helicopter and flatbed transportable configurations
Data Centers & Telecom
Modular electrical rooms and control enclosures for edge data centers, colocation facilities, and telecom switching stations. Factory-built modules with precision cooling and redundant power distribution arrive ready to connect.
- N+1 redundant HVAC and UPS systems
- Hot aisle / cold aisle containment options
- FM-200 or Novec 1230 clean-agent fire suppression
- ASHRAE TC 9.9 thermal guidelines compliant

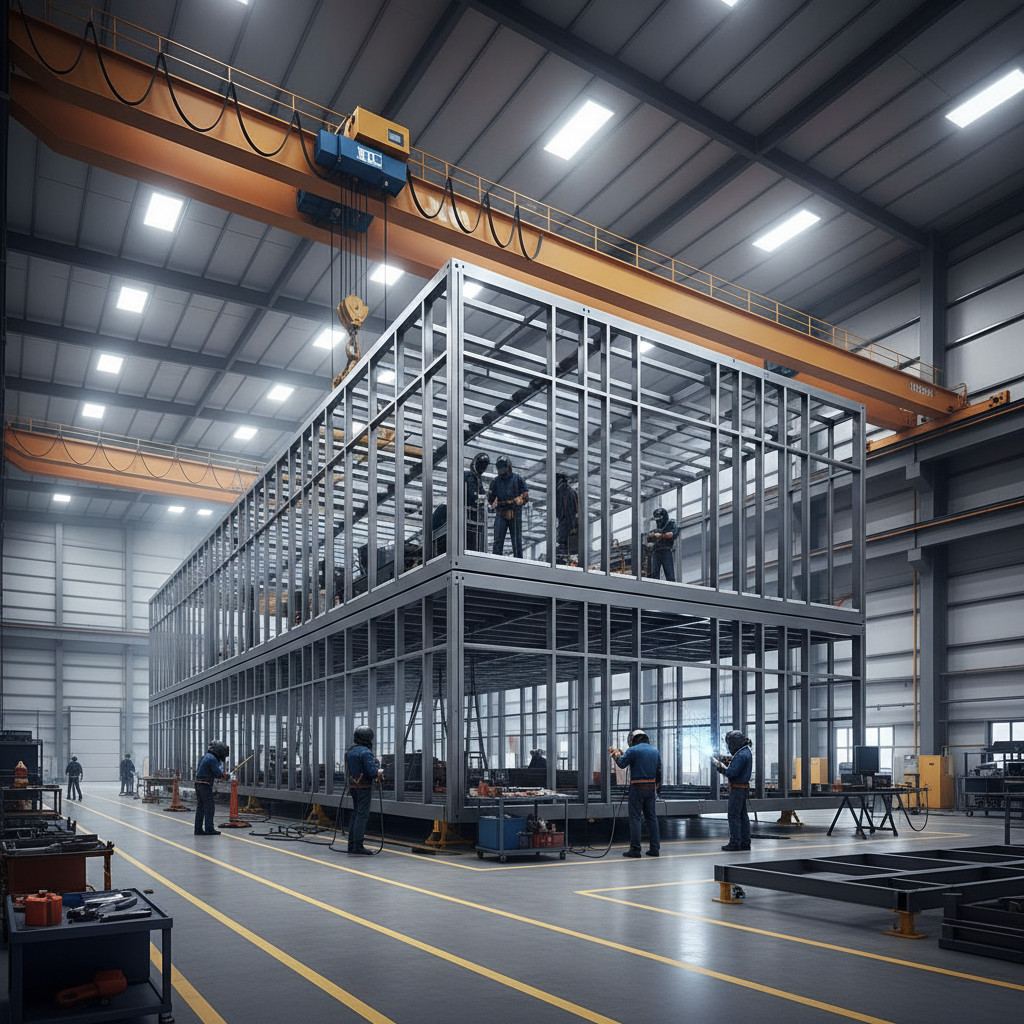

Built Indoors. Tested Indoors. Delivered Ready.
Factory-controlled conditions eliminate weather delays, improve weld quality, and enable parallel construction with your site work.
Why Go Modular?
Modular control rooms aren't a compromise — they're an upgrade over conventional stick-built construction in cost, quality, and schedule.
50–70% Faster Than Stick-Built
Factory fabrication runs parallel to site preparation. While foundations cure, your control room is being built, wired, and tested indoors. Typical delivery: 12–16 weeks vs. 9–14 months for conventional construction.
Factory Quality Control
Every weld, cable termination, and equipment mount is inspected in a controlled environment — not on a muddy job site. Factory builds consistently exceed field construction quality with full traceability from raw steel to final test.
Fully Tested Before Shipping
Complete factory acceptance testing (FAT) with your engineers present. Electrical systems, HVAC, fire suppression, lighting, and communications are all powered up and proven before the building leaves the plant.
Relocatable Asset
Modular control rooms are a capital equipment purchase — not a permanent structure. When the project ends or operations move, your control room moves with you. Re-deploy to a new site in weeks, not months.

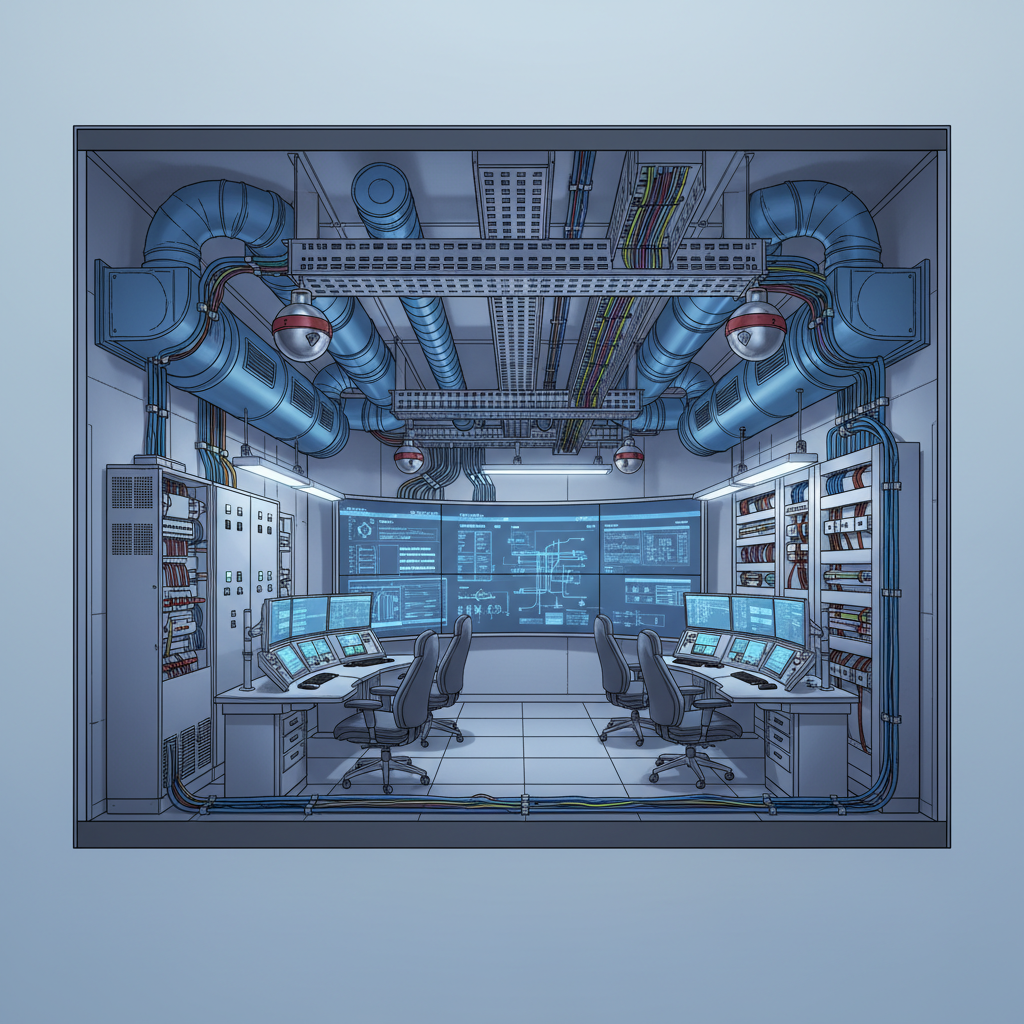

Technical Specifications
Every modular control room is engineered to order. These are the standard capabilities — custom configurations available for any application.
From Concept to Commissioning
A proven delivery process that keeps your project on schedule and under budget.
Engineering
Site survey, hazard classification, and detailed 3D engineering. All drawings stamped by a licensed PE.
Fabrication
Steel cutting, welding, coating, and equipment installation in our climate-controlled factory.
Testing
Factory Acceptance Test (FAT) — electrical, mechanical, fire suppression, and HVAC systems proven before shipping.
Delivery
Turnkey delivery to your site by truck, barge, or helicopter. Set, connect, commission — operational in days.
Frequently Asked Questions
Request a Quote
Tell us about your project and we'll connect you with modular control room manufacturers who can meet your requirements and timeline.
